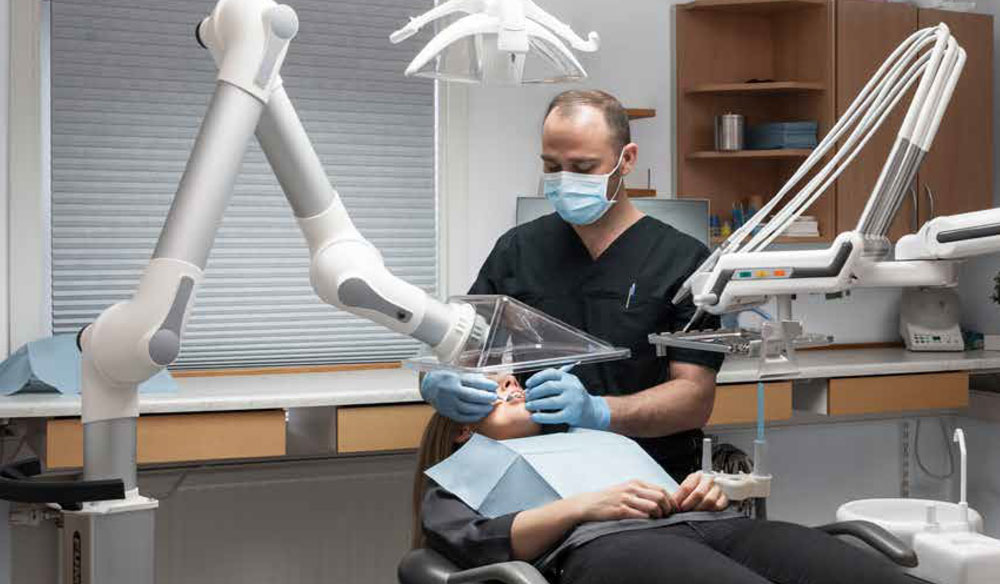

Portable filter system for environments where protection against viruses is essential, e.g. dental clinics, healthcare facities and laboratories.
FUMEX LFK is an effective and flexible solution consisting of a fan, filter and fume extractor in a single unit. It is highly suitable for use in healthcare environments where exhaled air, which could potentially contain viruses or residues from inhaled medicines, can be problematic. AAir Purification Systems can help; contact us at our San Diego, CA location today to learn more.
View the Brochure

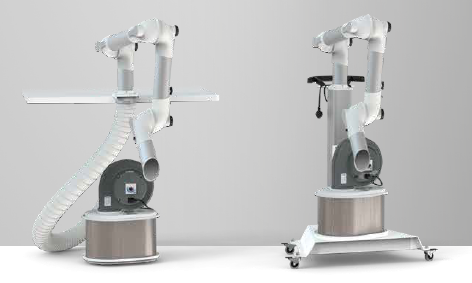

Fumex LFK U is available in two versions: LFK 150U with a Ø2” extractor arm, and LFK 175U with a Ø3” extractor arm. LFK U works according to the low-vacuum principle, which entails a very low risk of filter failure, produces little noise and has low power requirements.For maximum efficiency, Fumex LFK U is equipped with a highly efficient filter (ULPA 15 rating), an optimised fan with a highly efficient EC motor with speed control and a flexible ME extractor arm, which features the lowest pressure drop on the market.
Among the accessories is the LF TR, a portable trolley on lockable wheels with the bracket for the ME extractor arm. LF TR is compact and easily blends into the work environment.
The fan and filter can be combined with other extractors available in Fumex range of products.
Virus Filtration
Viruses in dry form have a size of 0.08-0.12 μm but are usually bound to an aerosol and are therefore almost
always larger. A ULPA filter is very good at filtering these particles.
Fumex LFK U has an ULPA filter (FPU 50) as standard. The filter is rated ULPA 15 and tested in accordance with EN 1822-1 and has a separation efficiency >99.9995%.
The filter is tested using the MPPS (Most Penetrating Particle Size) method with a size of 0.17 μm, which is the most difficult size for a filter to capture. For smaller or larger particles, the filter has higher separation efficiency.
The filter test is carried out at flow of 60 cfm per 11 ft2 filter area. At higher flows per ft², the filter efficiency is reduced. Fumex FPU 50 has a filter area of 54 ft² and can thus tolerate a flow of up to 295 cfm without diminished separation efficiency.
The FPU 50 filter should be replaced once a year.
Accessories
MOBILE TROLLEY LF TR
Mobile trolley for LFK U with lockable swivelwheels and mount for ME extractor arm.
Art. no: LF TR
Dimensions (HxWxD): 37x30x24”
Weight: 34 lb
EXHAUST AIR ADAPTER
Art. no: LF VTA
Ø5” exhaust air duct connector. Cannot be combined with LF TR.b
FLEXIBLE SUCTION NOZZLE
Art. no:
MEFS 600-50 (Ø2”)
MEFS 600-75 (Ø3”)
Length: 24”
SQUARE HOOD
Art. no:
MESH 350-50 (Ø2”)
MESH 350-75 (Ø3”)
Dimensions: 12×14”
FLAT SCREEN HOOD
Art. no:
MEPH 300-50 (Ø2”)
MEPH 300-75 (Ø3”)
Dimensions: 12×8”
DOME HOOD
Art. no:
MEK 350-50 (Ø2”)
MEK 350-75 (Ø3”)
Dimension: Ø14”

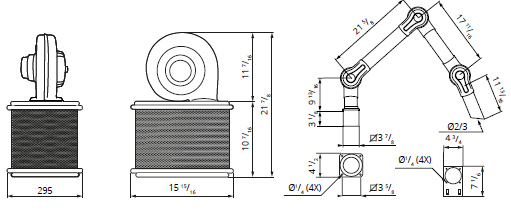

Specifications
Form of delivery
The complete kit for easy installation contains:
-
- Fan FF 100 · Filter FPU 50
- Hose SL-100LF, 10 ft · Table mount MBF
including:
LFK 150U
-
-
- Extractor arm MEB 1300-50
- Suction Nozzle MES 300-50
-
LFK 175U
-
- Extractor arm MEB 1300-75
- Suction Nozzle MES 300-75
Surface finishing
- Sheet metal parts
- Powder coated, galvanised
- Aluminum parts
- Anodized
Filter
Particle filter designed to meet the highest filtration requirements (ULPA 15 rating), tested in accordance with EN 1822-1 with separation efficiency >99.9995% MPPS.
Hose type
PVC-coated polyamide fabric with fully embedded spring steel coil. Temperature range 14 °F to 194 °F.
Fan
Fan housing in ABS plastic. EC motor with variable speed control.
Article FF 100-115V
Voltage 100-130V
Rated Current (A) 2,1 A
Power 0.2 hp
Frequency 50-60 Hz
Sound level: 60 dB(A)
Max temperature: 122 °F
Recommended air flow
LFK 150U: 44 cfm
LFK 175U: 88 cfm
Weight
LFK 150U 26 lb
LFK 175U 28 lb
